Continuous centrifugal
Silver Weibull continuous centrifugal offers lower cost per ton sugar produced due to high efficiency, low energy consumption and low maintenance cost.
Continuous DX!
Continuous DX is a new member in the Silver Weibull product range. The DX require less space replacing old smaller with new larger centrifugal.
Vibration damper on outside monitor casing for easier maintenance

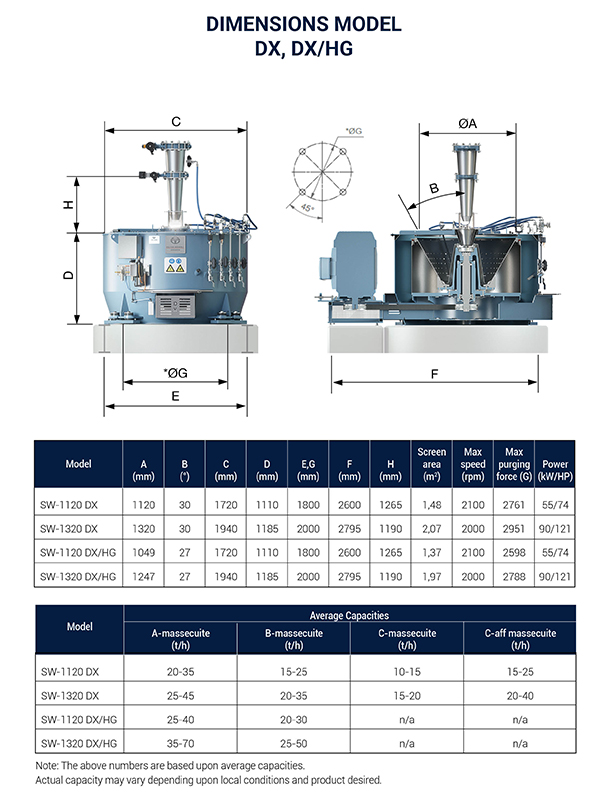

SW Continuous DX-model

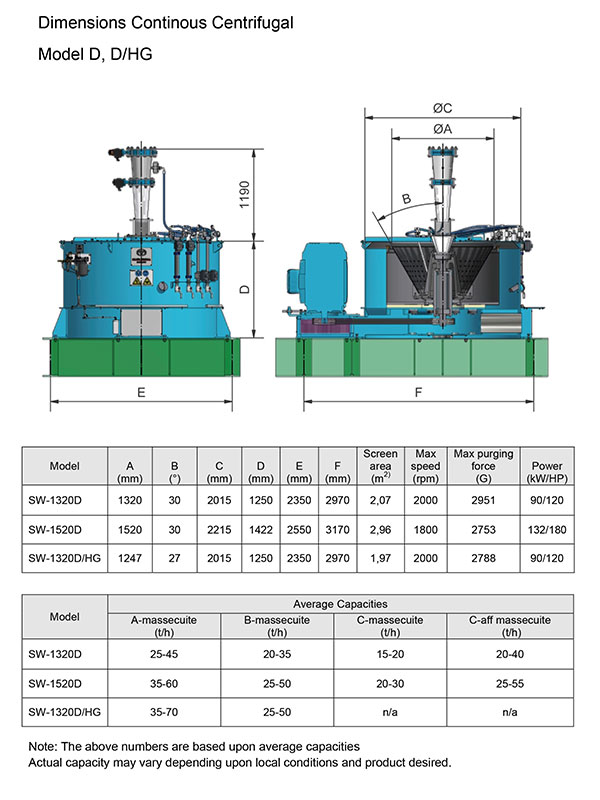

Continuous model D, D/HG
Advantages
Enclosed inlet with silvortex heater
Multistep massecuite distribution
Duplex ss basket
Unique basket flange design
Long life bearing system
Low stress belt drive
Common basket and syrup casing suspension
Capacity up to 70 metric ton massecuite/h.
Everything included, no hidden cost
Special features
Working with high quality material and unique design is of greatest importance and will reflect on safety, service life, maintenance and reliabitliy.

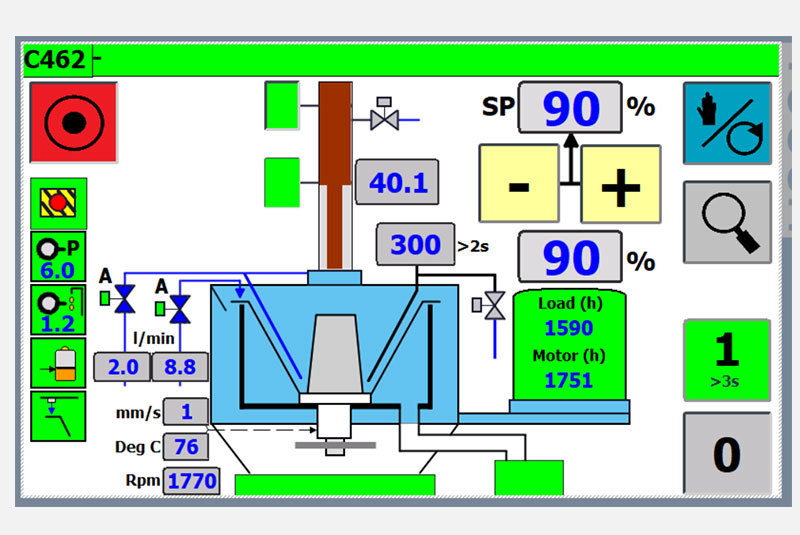

OPERATOR CONTROL PANEL
Centrifugal operations, manual/ automatic mode Fault tracing Parameter settings Indication of functions
Real time information:

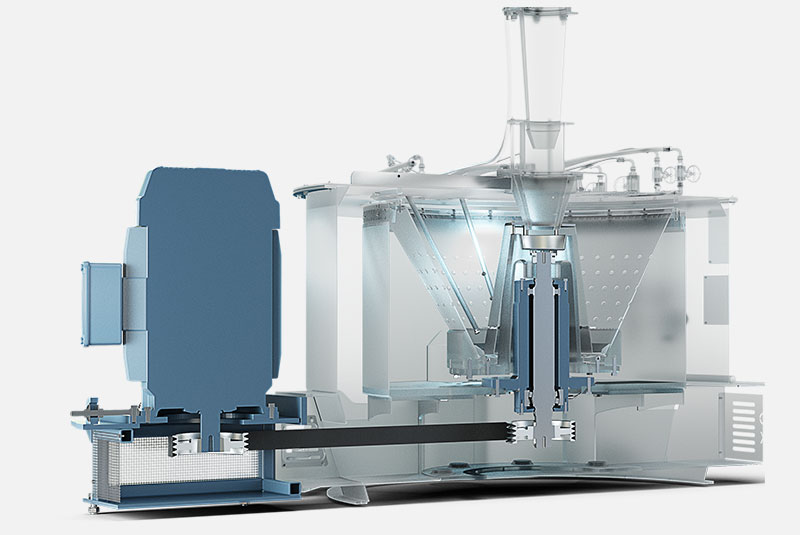

MOTOR MOUNTED ON SEPARATE FRAME
Easy adjustment of belt tension
POWER BAND DRIVE BELTS
High capacity transmission with low belt tension
TAPER LOCK PULLEY BUSHINGS
Easy monting and adjustment of pulley and belt

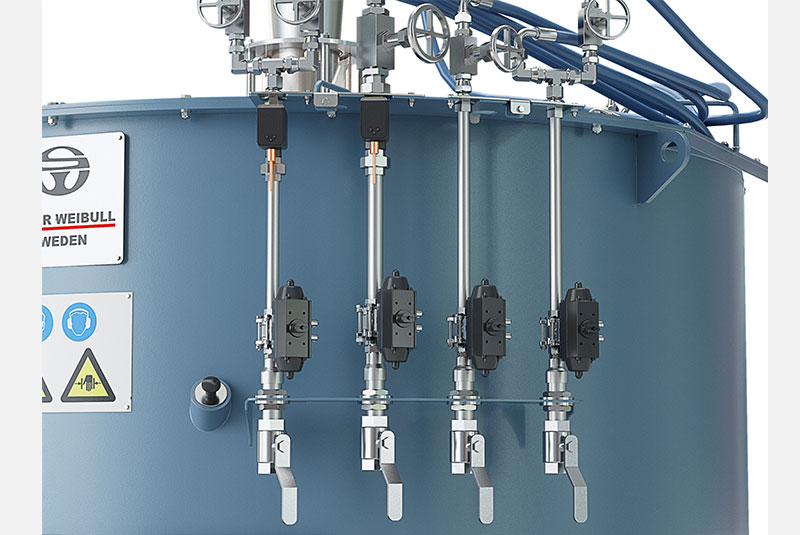

WASHSYSTEM
Complete delivery including digital flow meter, control valves and braided hoses.
Options; Affination media system with digital flow meter. Automatic wash media adjustment.

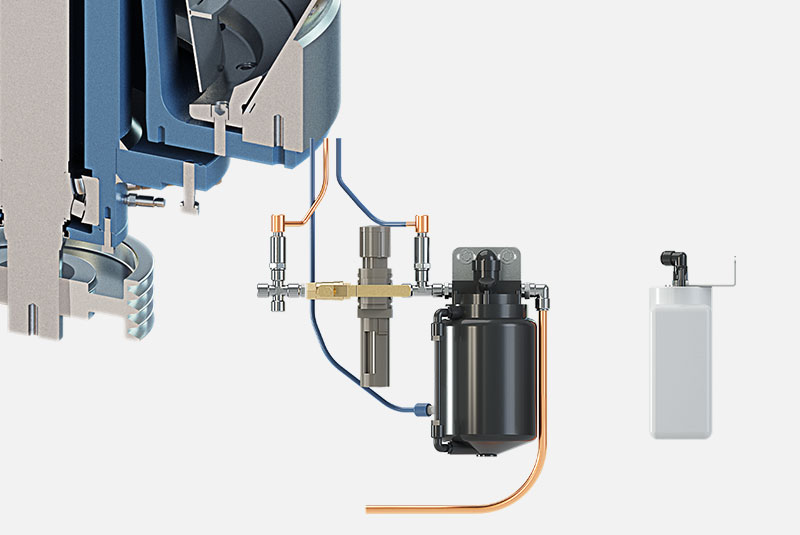

OIL MIST LUBRIFICATION
Over pressure in bearing house Cooling effect Effective lubrication Keep dust and vapour out

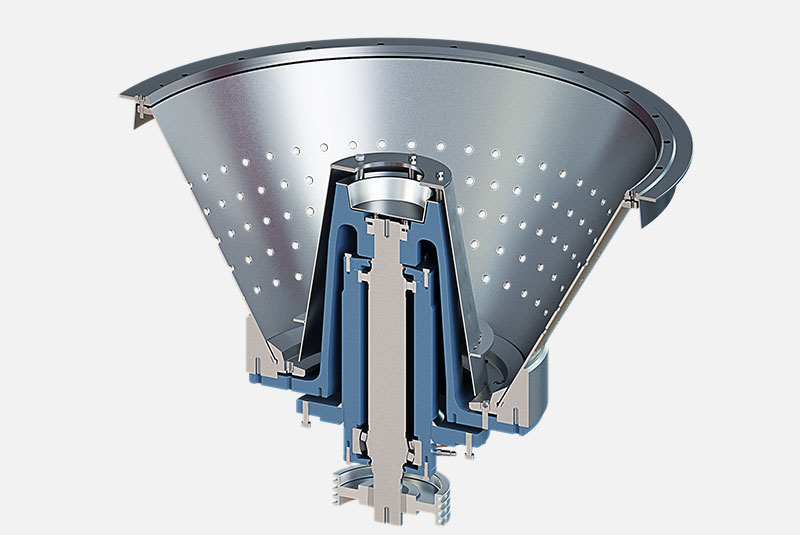

HEAVY DIMENSIONED BEARING SYSTEM
Very long service life
BASKET C. G. BELOW UPPER BEARING
Highest stability of the basket
STANDARD BEARING STATUS, VIBRATION & TEMPERATURE SENSORS
Measure bearing condition easy to check bearing status with hand hold instrument
Measure centrifugal vibration Measure bearing temperature
LONG DISTANCE BETWEEN BEARINGS
Strong and rigid basket suspension

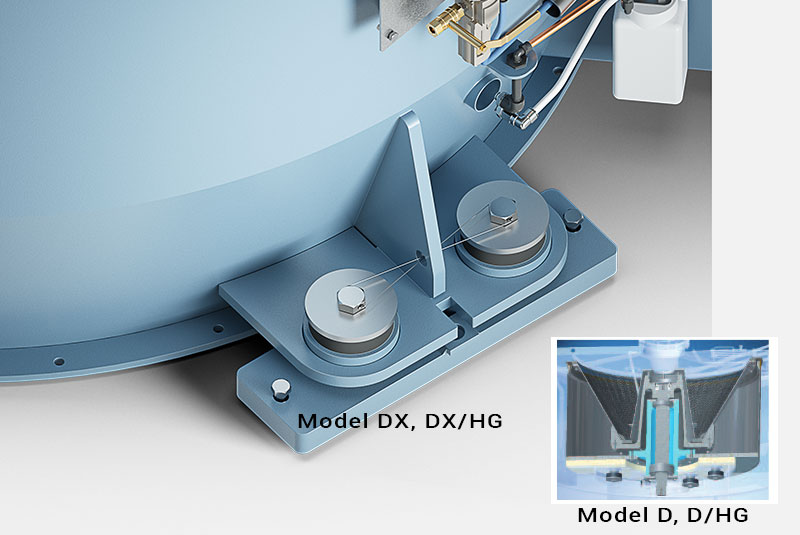

VIBRATION DAMPERS
DX version: Vibration dampers symmetrically placed for highest stability. Easy access for maintenance and replacement.
D version: Symmetrically placed rubber mounts under syrup casing.
BUTTERFLY EMERGENCY VALVE
Extended safety
BUTTERFLY CONTROL VALVE
Precise regulation

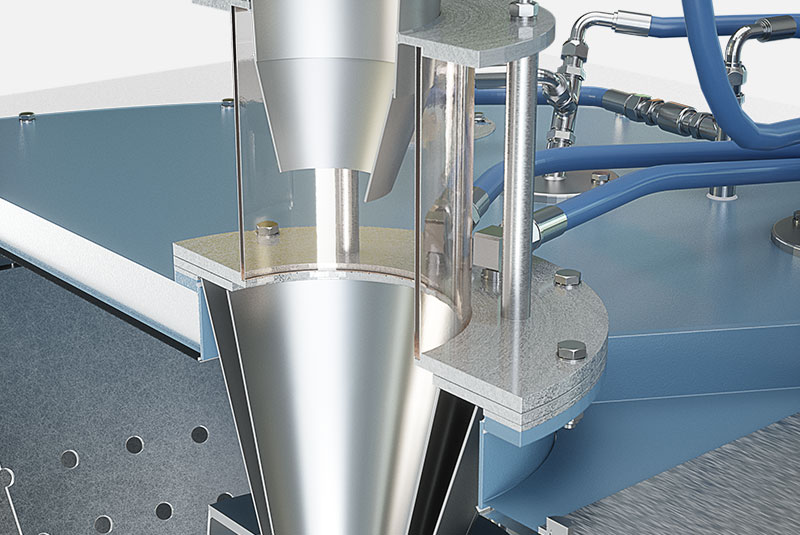

SILVORTEX HEATER
Addition of water and steam in inlet

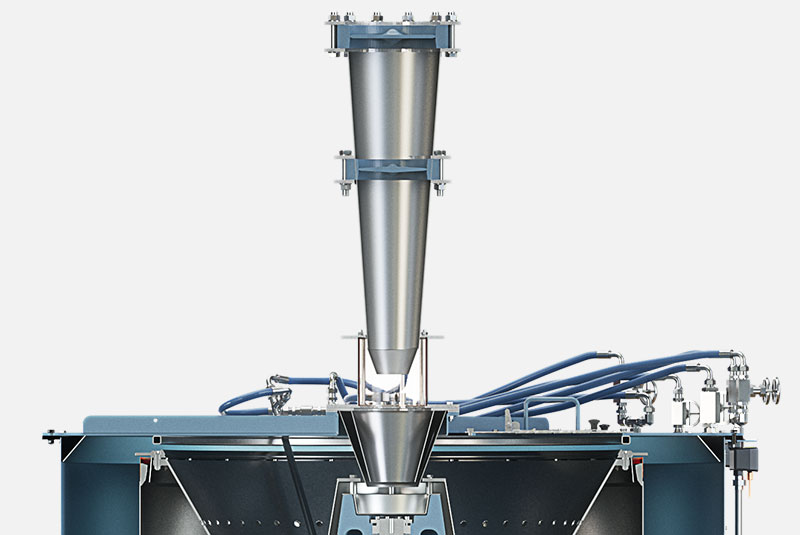

FEED CUP
Premixing of massecuite, water and steam
SIGHT GLASS
Easy observation

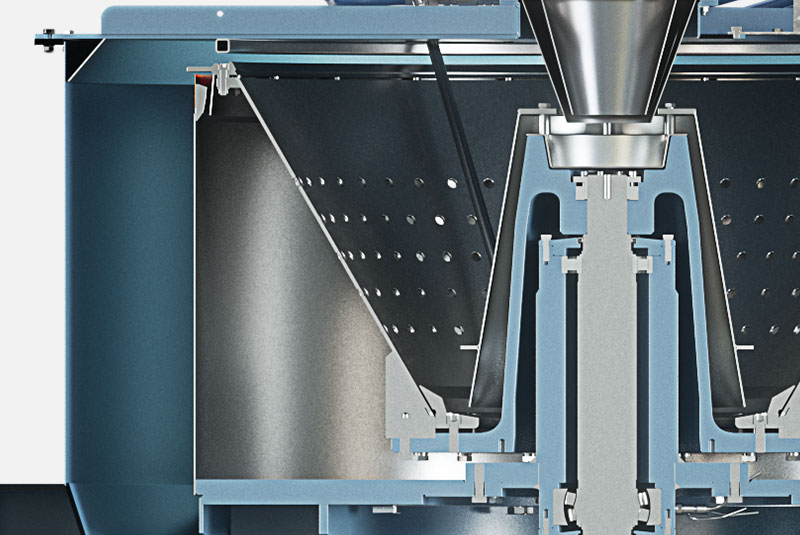

CRYSTAL DEFLECTOR
No crystal build up in monitor casing
No wear of the casing wall
DEEP BELL
Long massecuite travel path = very good distribution
PROFILED SCREEN CLAMP RING
Further improved massecuite distribution
UNIQUE BASKET FLANGE
Crystals leave the flange at inner radius = lowest speed.
Minimum crystal damage Minimum energy loss
UNIQUE GEOMETRY OF THE SYRUP DEFLECTOR
Positive sealing due to cyclon effect between the shroud and deflector
Options
Examples of Optional Equipment
Automatic feed control Internal magma mixing Internal melting Automatic chut off ball valves Affination media system with flow meter Second Wash Valve Wash of Inlet and Plough Blade

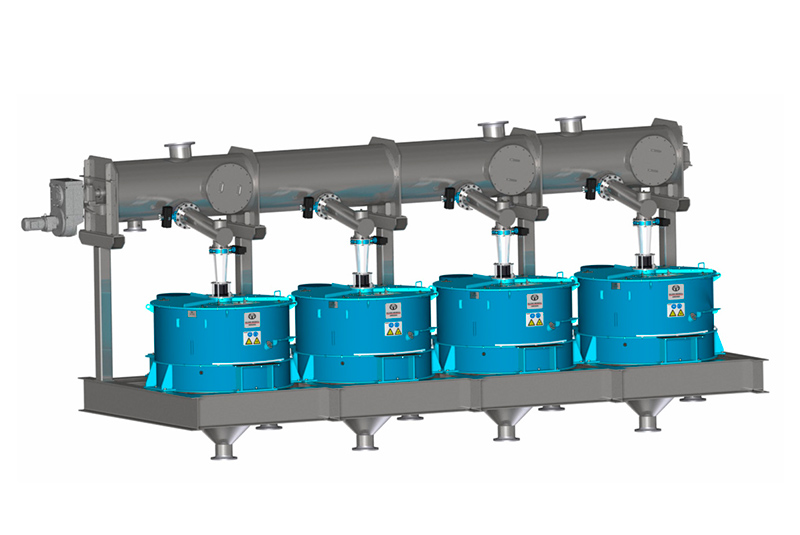

Continuous Centrifugals with feeder mixer, horizontal inlet and affination trough
